REHE KCT-10 Hinge Design 5A/2.5mA 20A/10mA 60A/20mA 75A/25mA 1-75A/0.333V split core transformer

Product Categories
YUEQING RENHE ELECTRIC CO., LTD.
Contact Now

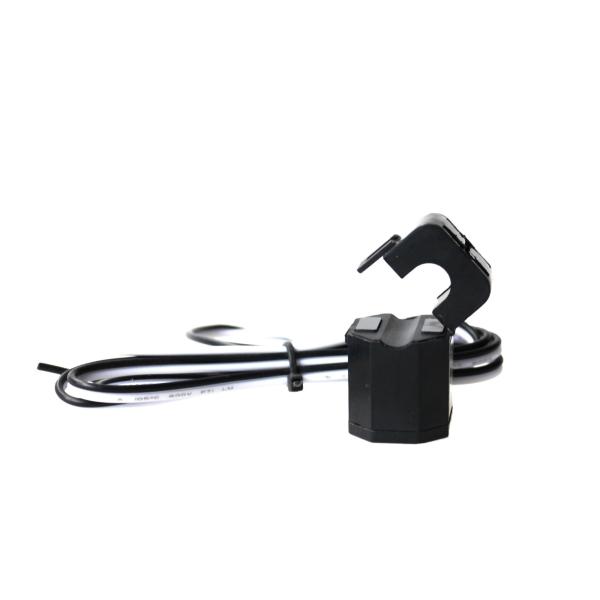

REHE KCT-10 Hinge Design 5A/2.5mA 20A/10mA 60A/20mA 75A/25mA 1-75A/0.333V split core transformer

  • 1
  • 2

Place of Origin : Zhejiang, China

Brand Name : Customized

Model Number : KCT10

Usage : Current

Phase : Single

Coil Structure : TOROIDAL

Coil Number : AUTOTRANSFORMER

Primary input : 5A-10KA

Secondary output : 0-500mA/1A/5A/333mV

Accuracy : 1.0/0.5/0.5s

Core : Silicon steel sheet / Ferrite / AMD / Permalloy

Outer Case : PA UL94-V0/ PC

Packaging Details : 1. Standard export carton ,suitable for long distance transportation.
2. Can customized package with customer's design,carton,box,and tape

Port : NINGBO/SHANGHAI

Supply Ability : 10000 Piece/Pieces per Day

Price : $4.00 - $5.00/pieces

Contact Now

Product Description

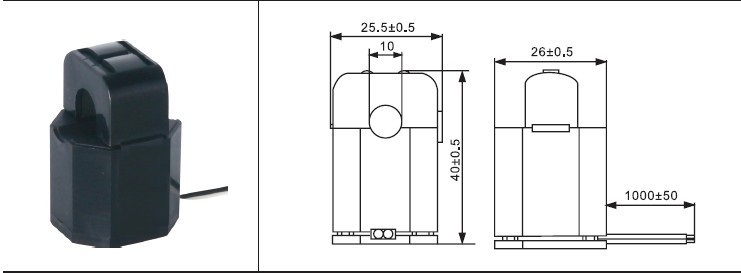

REHE KCT-10 Hinge Design 5A/2.5mA 20A/10mA 60A/20mA 75A/25mA 1-75A/0.333V split core transformer

Model KCT-10
Current Ratio 5A/2.5mA 20A/10mA 60A/20mA 75A/25mA 1-75A/0.333V
Primary Current (A) 5A 20A 50A 75A 1-75A
Max. Current (A) 60A 60A 75A 75A 1-75A
Output 2.5mA 10mA 20mA 25mA 0.333V
Load Resistance (Ω) 400Ω 100Ω 50Ω 20Ω /
Turns Ration
Class 0.5/1.0
Protection Level 7.5V0-P
Insuliation Category CATIII
Operating Condition -20℃ ~ +50℃, ≤85%RH, No condensation, IN-house & Any direction installable
Storage Condition -30℃ ~ +50℃, ≤85%RH, No condensation
Company Information

REHE KCT-10 Hinge Design 5A/2.5mA 20A/10mA 60A/20mA 75A/25mA 1-75A/0.333V split core transformer REHE KCT-10 Hinge Design 5A/2.5mA 20A/10mA 60A/20mA 75A/25mA 1-75A/0.333V split core transformer REHE KCT-10 Hinge Design 5A/2.5mA 20A/10mA 60A/20mA 75A/25mA 1-75A/0.333V split core transformer

Q: What are we doing?

A: Renhe Electrical manufacturer here, specialized in DIGITAL PANEL METER (A V Hz Cos W Var Kwh Varh) for 12 years.

Q: What’s the advantage compared to other suppliers?

A: Competitive price with high quality of product and superior service. We have professional sales team, production team, researching team.

Q:How is our customer service?

A: all our sales representatives can speak fluent English, some speak French. They will answer all of your questions in 24 hours.

Q:What others can we offer?

A: Based on the wide product range, we offer the best One-Stop sourcing service. We will definitely save you a lot of time and money, and based on our huge quantity of shipment, we can get the best shipping service from the best forwarders. This will also help you to save a lot on the shipment.

Q:What is the MOQ of our products?

A:The MOQ for digital ammeter is 100 sets.

Q:What is the payment of our company?

A. DP DA T/T L/C O/A is acceptable for us.
